Element San Bernardino Rocket and Fluids test laboratory provides specialized fluids testing with high-level expertise in space applications, including high pressure/high flow fluid and rocket engine static test capabilities. This facility supports the strictest testing requirements of aerospace, renewable energy, oil and gas and Navy Nuclear, high pressure/high flow.

Element San Bernardino — World-Class High Pressure/High Flow Fluid and Rocket Engine Testing

Element San Bernardino Rocket and Fluids test laboratory provides specialized fluids testing with high-level expertise in space applications, including high pressure/high flow fluid and rocket engine static test capabilities. Located at the San Bernardino International Airport, this facility supports the strictest testing requirements of aerospace, renewable energy, oil and gas and Navy Nuclear, high pressure/high flow.

We are a robust ground test facility for aerospace propulsion development testing; staffed by experienced managers, engineers and technicians. In more than 50 years of operation, we’ve maintained a superior performance record and an excellent safety record. Our premier facility hosts specialized test equipment and offers unique test capabilities for high pressure fluids. The team philosophy is to apply professional approaches to achieve superior test results while operating in full compliance to all regulatory requirements and environmental responsibilities.

Our facility is designed in accordance with API and ASME power piping codes, and all pressure vessels are ASME coded and commissioned for use in California. In addition, we are in full compliance with all federal, state and local agency requirements, including the South Coast Air Quality Management District.

Rocket Testing: Thrust Stand and Exhaust Duct

The thrust measuring system (TMS) can measure to 50,000-lbf thrust and 8,000-lbf side or asymmetric loads. Test articles are fired into a water-cooled duct designed to handle a 50k-lbf thrust rocket engine. With this duct, we can operate larger engines while mitigating sound levels. The TMS utilizes electric motors to remotely check load cell calibration prior to hot fire testing. Our data acquisition system resolves the forces and bending movements for all three axes and logs them as calculated data channels.

Fluid Flow: Hydrogen — 7 lbs/sec (GH2), 700 gpm (LH2); Oxygen — 3.2 lbs/sec (GOX), 5000 gpm (LOX); Nitrogen — 60 lbs/sec (GN2), 5000 gpm (LN2)

Our specialized large run tanks and pressure vessels, valves and components have been augmented by 18 additional pressure vessels from the former Boeing Rocketdyne Santa Susana Field Lab (SSFL). Many of the large pressure vessels are cryogenic storage tanks, steam blowdown vessels or pressurized run tanks. These unique, heavy-walled ASME coded vessels range in MAWP from 2,500 to 5,500 psia.

Cryogenic to 6000 psi Helium, Hydrogen, Oxygen, Nitrogen, Methane, Carbon Dioxide

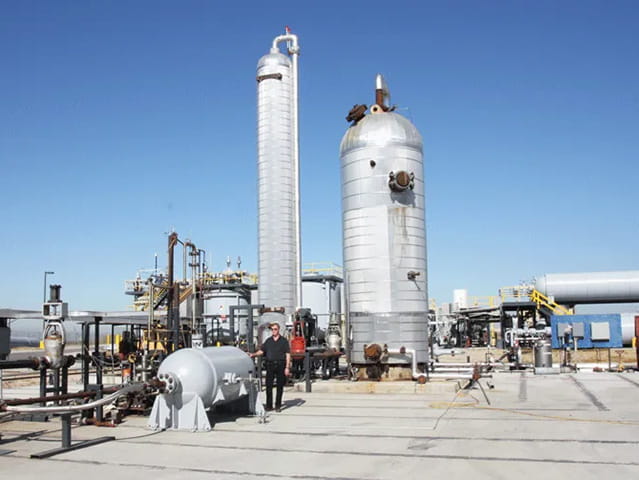

Our cryogenic fluid storage area consists of three 13,000 gallon liquid nitrogen tanks, one 13,000 gallon liquid oxygen tank and one 9,000 gallon liquid hydrogen storage tank. The tanks can be selectively filled to support independent testing activities or feed liquid to high pressure positive displacement pumps and vaporizers. The vaporizers are ASME-coded for use at a liquid hydrogen temperature of -423°F.

All pressure piping conforms to ASME B31.3 code design and is installed by certified welders with post-weld X-ray inspection as required. This site has the capability to store LH2, LO2, LN2, liquid CO2 and liquid methane as well as pump and vaporize cryo fluids up to 12 lbs. per second.

High Temperature at High Pressure (+1500 F at 2500 PSI)

Our collection of three vacuum jacketed stainless steel propellant run tanks in 2,500, 3,000 and 5,000 gallons allow the capability to support many different propellant combinations. They are equipped with both remote and local tanker truck fill ports, and a high-flow GN2 pressurization system for tank blowdown. The tanks feature both DP and resistive type tank level indicators that output to displays, data acquisition and control systems.

In addition to our propellant run tanks and flow systems, our facility contains eight gaseous nitrogen vessels with a volume of approximately 600 feet and a maximum allowed working pressure of 5,500 psig at -20°F to 150°F. Each pressure vessel has 3 inch ANSI Class 2,500 gate valves attached to the outlet, and are manifolded together to enable maximum flow capacity to the various high-flow, dome-loaded regulators.

High-Pressure Steam and Water Flow Test Systems (+700 F at 2800 PSI)

We have a large blow down tank capacity with over 800 feet of ASME-coded vessels rated at 4,475 psig at 700°F. The steam/water tanks can deliver constant test pressure to one of four test pad locations. In addition to the steam system, Element San Bernardino can conduct tests with cryogenic fluids, high-flow gases and water at pressures ranging up to 4,500 psig.

Structure Borne and Airborne Noise Measurement Capability

We've designed, built and verified a quiet technology test facility to MIL-STD-740-2 (SH). The 17.5′ x 12′ soundproof enclosure is capable of a minimum pressure of 5 psig, minimum flow of 5 SCFM, and a maximum pressure of 5,500 psig with maximum flow of 20,000 SCFM.

The accompanying control room consists of low-level microphones ranging from 15 dB to 140 dB. Data can be acquired up to 24-bit resolution with a sampling rate up to 100 kHz and 8 channels. It is DACS capable of automated sequences with redline control.

Data Acquisition and Control System

Our equipment is designed to give you the best results with regard to data acquisition to help with the detection of leaks and life cycling predictions. Our primary LabView-RT data acquisition and control systems consist of 224 analog input channels, 64 digital inputs and 192 digital output channels, and is based on the National Instruments PXI/SCXI real-time architecture.

Any combination of data channels can be monitored with redline control logic applied to initiate an automatic safe shut-down should customer-defined limits be measured for a prescribed period. We have three other NI LabView control systems to allow setup and test of a total of four simultaneous tests.

Video Data Systems

The Element San Bernardino video event recording system can record up to 20 minutes of imagery (640 x 480 resolution) at 200 frames/sec. The system can also capture, compress and record up to two hours of image data from six low speed cameras. It was designed so the images from all 8 cameras can be displayed in real time.

We also utilize IO Industries Streams 5Tm to handle all data recording requirements for an application. We can provide simultaneous data recording from a variety of streaming devices; synchronizing the data streams using computer time, GPS time or IRIG-B time. This has been specifically designed for test applications where requirements often extend to recording data from multiple cameras and other instrumentation. Key components of the video recording system include:

• Two high speed Mikrotron 1303 cameras with fiber optic extenders.
• Six Cohu 3695 iView cameras with remote Pan-TIlt-Zoom and 500 feet of power and control cable.
• Dedicated PCI-X computer with Streams 5 Software and 3.2 GHz Intel Xe
