High cycle fatigue (HCF) is useful for materials that experience low applied forces and where deformation is primarily elastic in nature. HCF tests are usually force-controlled and typically run to one million or more cycles.
Fatigue testing measures how cyclic forces will affect a product or material over time, using varying loads, speeds and environmental conditions. HCF tests are useful for simulating specific scenarios and investigating real-world failures.
High cycle fatigue testing procedure

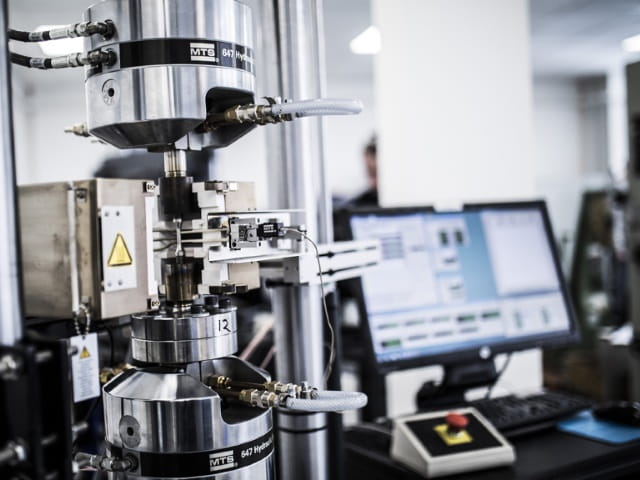

High cycle fatigue tests take place on an axial fatigue testing machine with a force-monitoring system. The sample is first machined, longitudinally polished, and ground into cylindrical or flat test specimens with a uniform or hourglass gage section. Our Engaged Experts perform alignment and verification of the machined specimen before beginning any testing.
During an HCF test, samples experience frequencies ranging between 20 Hz and 100 Hz, depending upon material types and environmental conditions. Testing continues until specimen failure or until a predetermined number of cycles is reached.
ASTM E466 high cycle fatigue testing
Element provides HCF testing to a number of industry specifications including ASTM E466, the standard test method for force-controlled fatigue testing.
Aerospace high cycle fatigue testing
We provide indispensable High Cycle Fatigue Testing (HCF Testing) of engine airfoil and gas turbine components for service life limit analysis, simulating high vibrations conditions of airfoils during operation.
The Element advantage
Element performs a variety of fatigue tests, including high cycle fatigue, ASTM E606 low cycle fatigue, ASTM E2368 thermo mechanical fatigue (TMF) testing, and specialized programs on a range of metals and alloys, polymers, and components.
For more information about high cycle fatigue testing or to request a quote, contact us today.
International Organization for Standardization
Military and Defense Standards
DEF STAN 08-123, DEF STAN 07-55
MIL-STD-1312-11, MIL-STD 810G: Method 514.6, Method 519.6
