A Charpy impact test, also known as the Charpy V-notch test, is a destructive method that measures a material’s toughness, the ability to absorb energy, and resistance to brittle fracture.
Understanding the energy absorption properties of a material is essential to predict how the material will react to impact loading and is, therefore, a determining factor in the suitability of a designed material for a particular application. Designed to measure the amount of energy that a material can absorb as it fractures, Charpy impact testing is a vital part of many material characterization programs.

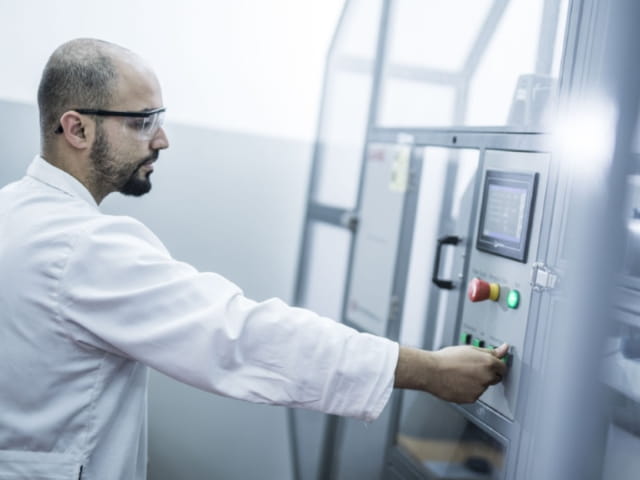

Charpy impact test
The test uses a pendulum arm to strike a standard notched specimen with a hammer from a known height and break the test specimen. After impact, samples are analyzed for the amount of energy absorbed by the specimen during fracture and strength characteristics. The impact energy indicates the toughness of a material.
As a world leader in the provision of routine mechanical testing, Element provides the Charpy impact test services in accordance with multiple International standards for both metallic and polymeric materials. Our ISO 17025 accredited testing laboratories support quality design programs with accurate test results and competitive turnaround times.
Our Charpy impact test capabilities
- Ambient and low-temperature testing
- Cryogenic testing capabilities
- Ductile-brittle transition curves
- Plasticity and deformation
- U-notch, V-notch, and double notched
- Energy absorption characteristics
- Lateral expansion
- Percent shear
- Crystallinity and shear determination
- NADCAP, ISO 148, and ASTM E23 accreditations
- Charpy impact machines - 450 Jules capacity
We can also subject materials and products to dynamic Charpy impact, measuring cushioning, g-force, and impact failure mechanisms.
Element’s Charpy test reports
Charpy testing provides a wealth of material data with a single test. We help ensure that you get the most out of your materials by providing in-depth, detailed impact test reports.
To speak to an expert about our Charpy impact testing services, or to request a quote, contact us today.

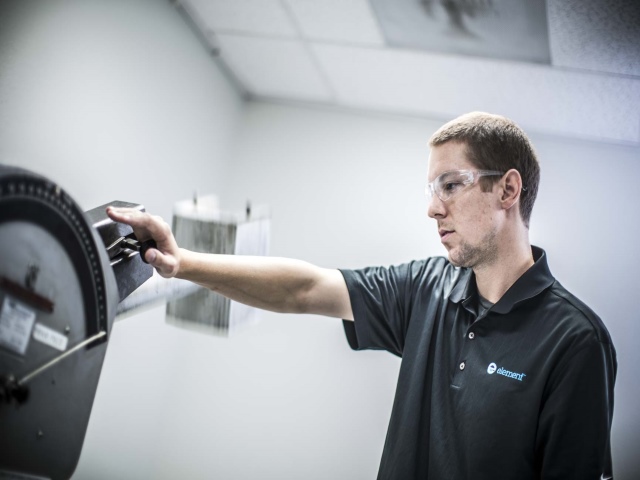

Charpy vs. Izod: An Impact Testing Comparison
Both Charpy and Izod impact testing are popular methods of determining impact strength, or toughness, of a material. This article examines the key differences between both methodologies.

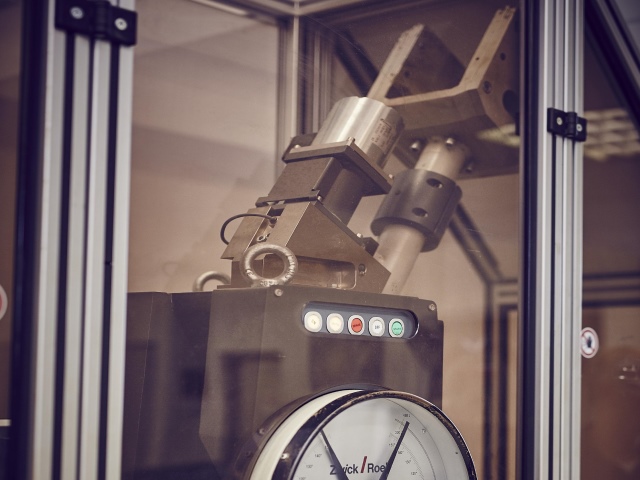

Performing the Charpy test to assess materials notch toughness and satisfy industry specifications
Element’s Experts perform the Charpy impact test to assess material’s notch toughness and help ensure the safety and integrity of both structural components and finished products.
Non-Metallic Impact Strength Testing Services
In addition to Charpy testing, we provide specialized impact test methods for non-metallic materials, including Izod impact testing and Gardner impact testing.
Standards We Test To
American National Standards Institute
ASTM A327, ASTM A370, ASTM A673, ASTM D256, ASTM D2164, ASTM D2794, ASTM D3763, ASTM D5420, ASTM D5628, ASTM E 23, ASTM E1007, ASTM E1803, ASTM E1886, ASTM E1996, ASTM F 588, ASTM F 842, ASTM F1776
Deutsches Institut Fur Normung
International Organization for Standardization
ISO 83, ISO 140, ISO 148-1
International Safe Transit Association
ISTA 1B, ISTA 1E
Japanese Industrial Standard
JIS B1051, JIS B7722, JIS Z2242
MIL-S- 901D, MIL-STD- 202F (Method 205), MIL-STD-202G (Method 207B)
Nederlands Normalisatie Instituut
SAE J400, SAE J1402
nearly 190 years of making certain
More from Element

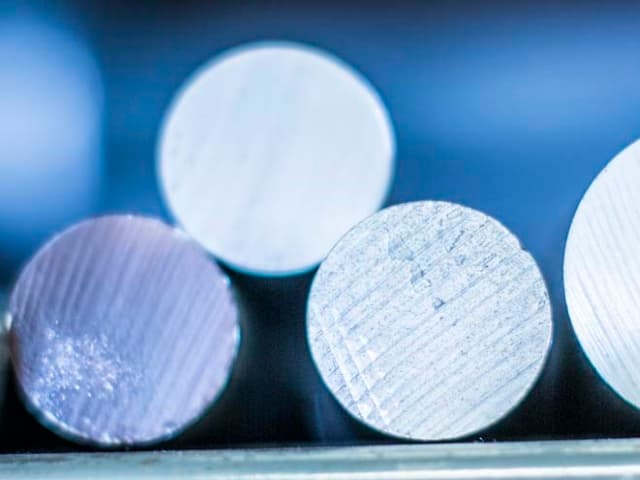

Die Steel Qualification
