Radio Module Integration Guide: Navigating Compliance for Host Products

Radio module integration makes you the manufacturer of a new radio product. A module that carries a CE mark or FCC ID does not pass that approval to your finished device. Once your name is on the enclosure, you are responsible for its compliance in every market you sell into.

Who Should Read This Radio Module Integration Guide (US, UK, and Canada)

If your product contains a radio module and you plan to sell into the US, UK, or Canada, this guide is written for you. It answers the questions that most often catch hardware engineers and product teams off guard:

1. Your module has an FCC ID or CE mark. That does not automatically cover your finished product, and this guide explains why.
2. You know you need to test, but not which approvals your product needs first. This guide sets out the right order.
3. You are selling into more than one market and need to know where the US, UK, and Canadian requirements differ. This guide covers all three.
4. You have multiple radios in your product and are not sure what that means for certification. This guide covers that too.
5. You want to know what compliance work you can do early in development to avoid expensive late-stage failures.

Why Download This Whitepaper?

• Understand the difference between testing and approvals, the concept that most influences cost, timelines, and overall compliance strategy.
• Learn the three-step compliance process for radio-enabled products, from determining approvals to selecting testing and completing documentation.
• Get clarity on CE, UKCA, FCC, and ISED, and how each treats radio performance, EMC, safety, and RF exposure.
• See how risk assessments guide testing decisions and reduce late-stage failures.
• Understand modular approvals, what they do and do not cover, and the responsibilities that stay with the host integrator.
• Learn how multi-radio coexistence affects compliance, including intermodulation and simultaneous transmission.
• Identify integration pitfalls that lead to re-testing or invalidated certifications.

To receive a copy of this whitepaper by email, fill out your details in the form below.

Radio Module Integration Guide: Abstract

As connected technology advances, radio modules are becoming a fundamental component across consumer electronics, industrial systems, medical devices, and smart infrastructure. This guide offers a clear overview of the regulatory and technical factors involved in integrating radio modules into host products for international markets. It explains the difference between testing and approvals and sets out a three-step process: identify the required certifications by geography and radio technology, determine the testing strategy, then prepare and maintain the compliance documentation. It covers the core features of CE, UKCA, FCC, and ISED, and how each addresses EMC, safety, RF exposure, spectrum usage, cyber security, and ongoing conformity. It also covers enclosure effects on module performance, hardware and firmware changes, modular approval limits, and multi-radio systems.

Excerpt

“The host integrator should view any significant difference between the performance of the radio module standalone and the performance of the radio once installed into the host as a warning sign that the end product may not be compliant.”

Testing vs Approvals in Radio Module Integration: Why the Difference Matters

 A CE mark or FCC ID confirms that the module is approved for sale in that region. It does not confirm that your product is approved. Testing will still be required once the module is in a host, and starting with testing before the approvals question is settled is a reliable way to spend weeks pursuing the wrong goals. Passing a test does not mean your product is approved; holding an approval does not mean your product will pass every test. For a fuller treatment of this distinction, read our overview of testing and approval for radio compliance.

What Manufacturers Get Wrong About Radio Module Compliance

“The most expensive mistake I see is starting with testing. Approvals and testing are related, but they are not the same thing, and the approvals you need should govern the testing you do rather than the reverse. A transmitter for the US needs a Grant of Equipment Authorization through a TCB; the same product for Canada needs an ISED Radio Equipment List listing; in the EU there is no certification process at all, only a declaration of conformity that you sign and stand behind.” — Alexander Toohie, Technical Solution Manager, Element Connected Technologies & Mobility

How to Take a Radio Module Product to Market: The Three-Step Compliance Process

Step One: Planning Identify the Approvals Your Product Needs

Determine which approvals, not which tests, your product needs. That depends on where it will be sold, the radio technology and the host itself. Most transmitters entering the US require an FCC Grant of Equipment Authorization; in Canada the same product usually needs an ISED Radio Equipment List listing; in the EU it must be CE marked against the Radio Equipment Directive 2014/53/EU.

Step Two: Determine the Testing Those Approvals Require

Only once the approvals are known can you decide what testing is needed to satisfy them. Volume and type depend on the technologies supported, any changes to the radio portions of the design, and your own tolerance for cost and risk.

Step Three: Process the Paperwork to Obtain the Approvals

Some regions require a regulator or an appointed body, such as a Telecommunication Certification Body (TCB) for FCC certifications; the EU often requires no third party at all. Note also where responsible actors must be based: FCC SDoC, for example, requires a responsible party in the US.

CE Marking, UKCA, FCC, and ISED: Which Regulatory Scheme Applies to Your Product?

Almost every country outside the EU runs its own scheme, shaped by its interest in protecting national spectrum. There is no one-size-fits-all route. The four schemes below are the ones most relevant to manufacturers selling into the US, UK, and Canada.

CE Marking and the Radio Equipment Directive

The Radio Equipment Directive (RED) sets essential requirements for safety, EMC and efficient use of spectrum for radio equipment up to 3000 GHz, plus cybersecurity, emergency services access, battery charging and software updates where enacted. There is no certification process: the single route is a declaration of conformity (DoC) signed by the manufacturer. Legally, the manufacturer is whoever’s name is on the product, so a module in your own host makes the whole product yours.

Risk Assessment, Harmonized Standards and Notified Bodies

The compliance risk assessment underpins everything: it records the hazards identified, the standards chosen and how the equipment was operated during testing. Standards give presumption of conformity only when cited in the Official Journal, which decides where the burden of proof sits. For the cybersecurity, spectrum and emergency calling requirements you must either wholly apply harmonized standards or obtain an EU-type examination certificate.

UKCA and UKNI Marking (Great Britain)

The UK transposed the RED into the UK Radio Equipment Regulations 2017. Under the Product Safety and Metrology etc. (Amendment) Regulations 2024, CE marking remains accepted in Great Britain for the RED, so most radio equipment needs only a CE mark. Where UK spectrum allocations diverge, a product needs both a UKCA declaration of conformity and a CE declaration of conformity. The UK government's position on CE acceptance is under ongoing review, so verify the current status before finalizing documentation.

FCC Certification: System Approval vs Modular Approval (USA)

Almost every transmitter sold into the US needs an authorization, obtained by testing at an accredited, FCC-listed laboratory and submitting the evidence to a TCB. There is no route to certification without test evidence. A system approval covers the whole device; a modular approval covers the transmitter alone, and requires shielded RF circuitry, buffered data or modulation inputs, independent power supply regulation, permanently attached or uniquely connectorized antennas, and standalone testing. Meet only some of those criteria and the approval is limited to prescribed hosts. Either way, modular approval reduces the certification burden, not the testing burden. You can confirm a laboratory or body on the FCC's TCB database

FCC Supplier's Declaration of Conformity (SDoC)

Receivers and other digital electronics often need no certification and can follow the SDoC process instead. Despite the name, SDoC is a procedure rather than a final document, and testing must follow the exact standard the FCC specifies, though an accredited laboratory is not mandatory.

ISED Certification (Canada)

ISED's remit closely mirrors the FCC's, but the differences matter. Certification is not complete until ISED lists the device on the Radio Equipment List, and there is no public certificate database, so conditions of use must come from the certificate holder. Validity is the sharpest difference: the RSS documents change often, and after a transition period all products on the Canadian market must meet the new version, including designs certified years earlier.

What EMC, Safety, and Radio Testing Your Integrated Product Requires

Beyond product-specific requirements such as ingress protection, most radio products need some combination of EMC, safety, radio spectrum, and cyber security testing. The host product's hardware changes the test picture even when the module tested cleanly on its own.

EMC Testing

EMC divides into emissions and immunity, then into radiated and conducted methods. Emissions requirements apply almost everywhere; immunity is largely a European concern under CE and UKCA marking. For radio equipment, immunity should also be run in idle or receive mode, because interference can make a radio transmit when it should be quiet.

Safety and RF Exposure

A safety assessment is required under the RED and the UK Radio Equipment Regulations, but not as part of FCC or ISED approval beyond RF exposure. Lower-power devices used away from the body can often be assessed by calculation; higher-power or body-worn devices may need SAR testing, power density, or nerve stimulation testing. SAR must be performed on the end device in its final enclosure, which is why module-level data cannot be inherited.

Radio Spectrum Usage

Radio tests cover output power, bandwidth, frequency stability, spectral density, and spurious emissions, plus receiver sensitivity, selectivity, and blocking. Radiated tests are far more sensitive to surrounding hardware than conducted tests, which is why many integrators repeat radiated spurious emissions with the module installed. Radio frequency regulatory compliance testing confirms the finished product still uses the spectrum correctly. ETSI Guide EG 203 367, available free from the ETSI website, describes how to judge whether existing module test evidence still represents the finished product.

Multi-Radio Products

When a product contains more than one radio, signals can combine and produce additional emissions through intermodulation. The FCC expects intermodulation results when multiple radios share a single antenna, common in some 2.4 GHz modules. Wireless coexistence testing covers intermodulation assessment for multi-radio products.

Cyber Security

Cyber security is now a live compliance requirement for many connected radio products. In the EU, RED Articles 3.3(d), (e), and (f) apply to radio equipment that can connect to the internet, is intended for children, or processes certain data, assessed against the EN 18031 series. In the UK, the Product Security and Telecommunications Infrastructure Act sets baseline requirements for consumer connectable products. Assessment is largely documentation-based, followed by testing that confirms each claimed mechanism works. See Element's Cyber Resilience Act compliance testing.

Expert Insight from Alex Toohie

“A certified module is a starting point, not a finished job. Once it goes into a host, the enclosure, the PCB tracks, the cable set, and the antenna position all become part of the radio. We routinely see radiated spurious emissions and peak output power shift after installation, and the useful question is not whether the product still passes; it is why the numbers moved. Those differences are far cheaper to find in pre-compliance than in a formal test campaign.” — Alex Toohie, Technical Solution Manager, Element Connected Technologies & Mobility

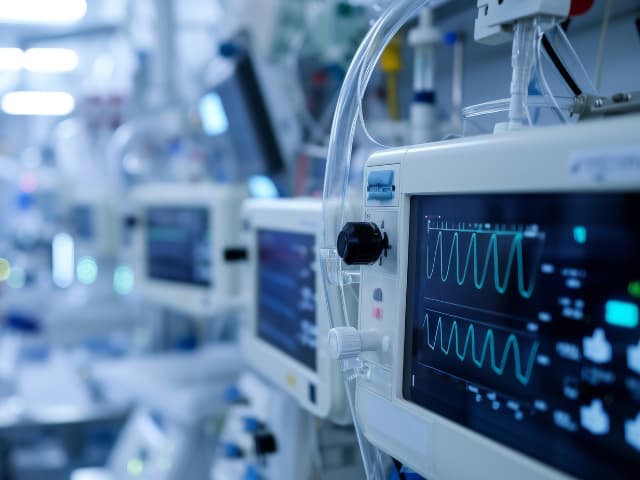

Radio Modules in Medical Devices

Medical device integrations add obligations that general host products do not, including wireless coexistence tied to the device's medical function and RF exposure conditions for body-worn use. For the medical-specific detail, read our article on using pre-certified radio modules in medical devices.

Radio Module Testing and Certification Services from Element

Our advisory team helps you interpret the requirements and select the standards and clauses that form the basis of your risk assessment. Our ISO/IEC 17025 accredited wireless testing laboratories in the US, EU, UK, and Korea cover a wide range of RED standards, including newer standards listed with restrictions. As an ISO/IEC 17065 accredited Notified Body to the RED, our product certification and approvals team can also issue the certificate. To speak to an expert about your compliance path, contact the Connected Technologies & Mobility team.

Conclusion: Plan Your Radio Module Integration Approvals, Then Plan the Testing

An existing module approval reduces the administrative burden, but it does not transfer responsibility, and it does not answer the questions that matter about your finished product: whether the conditions on the module's grant still hold in your enclosure, whether its RF exposure authorization matches your use case, and whether radiated performance has shifted. Establish your markets and the approvals they demand first, then let those define the test plan. Download the full whitepaper for the detail on each scheme, the modular approval criteria, and the testing decisions that most often determine whether a host product reaches market on schedule.

Radio Module Integration Compliance: Frequently Asked Questions

If my radio module has an FCC ID, do I still need to test my finished product?

Yes. An FCC ID means the transmitter was certified standalone, not inside your product. At a minimum you run radiated spurious emissions testing with the module installed. You are also responsible for Part 15 Subpart B compliance for your digital circuitry, RF exposure assessment for your actual use scenario, and confirming the module's grant conditions are met in your design.

Can I use my module's CE mark and test reports for my own Declaration of Conformity?

Not as a substitute for your own assessment. Integrating a CE-marked module under your brand creates new radio equipment in scope of the RED, and you draw up a new declaration of conformity for it. Some module test evidence may carry over, particularly conducted tests, depending on how closely your integration matches the original setup.

Who is responsible for CE marking compliance when a finished product contains a radio module?

The manufacturer of the finished product. Under CE marking the legal manufacturer is whoever's name is on the product. Once you rebrand and integrate the module, that responsibility transfers to you.

Which approvals do I need to sell a radio product in the US, UK, and Canada?

Each market has its own scheme, and no single approval covers all three. The US requires FCC authorization, Canada requires ISED authorization, and Great Britain requires compliance with the UK Radio Equipment Regulations. CE marking is currently accepted for most radio equipment in the UK, though this is under review. Test evidence can often be shared across submissions to reduce cost.

Is wireless coexistence testing required for a product that uses a pre-certified module?

Where the wireless function forms part of the product's essential function, yes. It is tied to the finished product, not the module, so it cannot have been addressed at module level. Wireless coexistence testing is carried out on the finished device.

Download the full whitepaper for the detail on each scheme, the modular approval criteria and the testing decisions that most often determine whether a host product reaches market on schedule.
