Case Study

Characterization of adhesive related leachable deriving from medical infusion bag.

Mike Ludlow

By Engaged Expert

Mike Ludlow

More content from this author

Learn about our Engaged Experts

Market Development Manager for E&L at Element Life Sciences Manchester. 25+ years of pharmaceutical analysis specialising in trace impurity analysis and extractables and leachables.


Following a supplier change, the client detected a solvent-like odor deriving from the components of an infusion bag system. It was suspected that the adhesive used to attach the injection port to the IV bag may be the source of the odor and that there may potentially be an impact on product safety.


The Challenge

The client required Element Life Sciences to confirm the identity of the volatile component and provide an accurate estimate of the potential leachable levels that may enter the final drug product during storage in the IV bags.


The Solution

Using HS-GC-MS (headspace gas chromatography-mass spectrometry) Element’s Rapid Response team, based in Manchester, confirmed the identity of the volatile organic substance to be Cyclohexanone, a precursor used in the production of solvent-based adhesives.

An extraction study of the infusion bag port component provided quantitative evidence that the levels of Cyclohexanone present in the new component could potentially adversely impact patient safety.

In order to achieve the required reporting threshold (0.04µg/mL) it was necessary to optimize both the sample preparation methodology and the HS-GC-MS parameters.

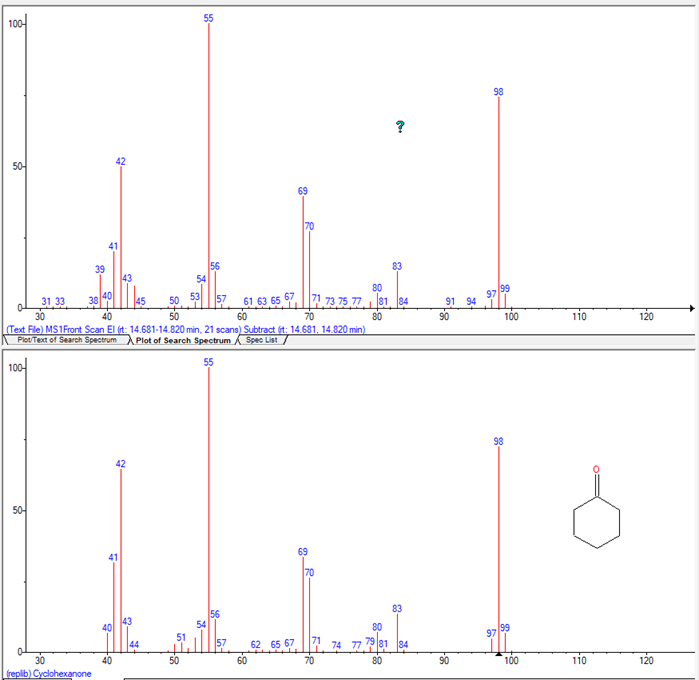

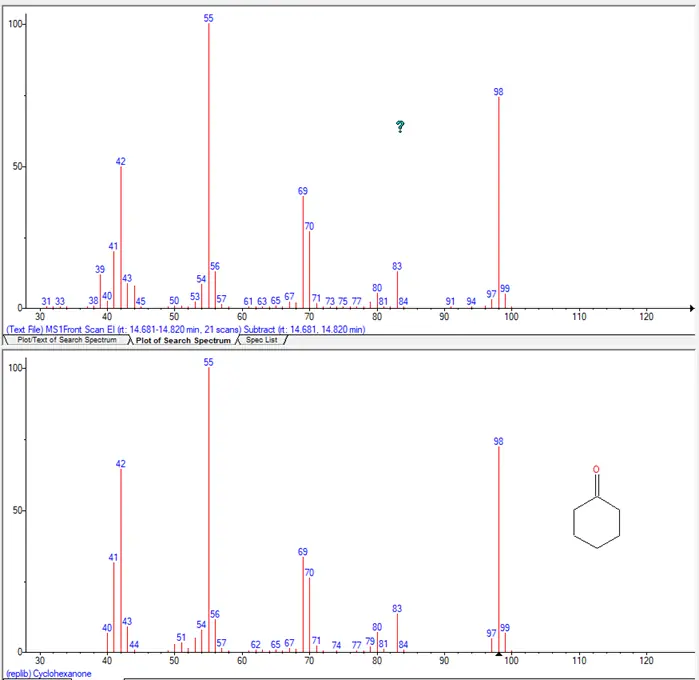

The below chart shows mass spectra data for impurity and library database match.


The Result

Element confirmed that the change in manufacturer of the infusion bag did have an adverse impact on product safety. The results of our study allowed the client to source a suitable alternative before the product was released to market.

Find related Resources

Rapid Response Team

Rapid Response Services

Element's Rapid Response team cater to your time-sensitive analytical needs with bespoke investigatory analysis of pharmaceutical products.

Available to our European, Middle East and Asian clients, our Rapid Response solutions cover a wide range of analytical needs from impurity characterization, to investigational problem-solving, and comprehensive analytical method development & validation.

Our capabilities cover all aspects of pharmaceutical and consumer healthcare product testing, boasting cutting-edge instrumentation and expertise to help customers resolve complex issues efficiently.


About the author

As Market Development Manager at Element Life Sciences Manchester, Mike Ludlow has over 25+ years of pharmaceutical analysis specialising in trace impurity analysis and extractables and leachables.

Graduating as a chemist, Mike began his career in the analytical lab of a multinational chemical company, before focusing on NMR and LCMS in the spectroscopy area. Before joining Element in June 2023, Mike led an analytical function specializing in extractable and leachable testing, offering expert support globally.

Mike is dedicated to assisting our clients in bringing forward innovative products that enhance the well-being and comfort of patients.
